TEC SPECS
|
Model |
2000R Mini |
|
Input Voltage |
DC12V/48V |
|
Operating Current |
20-50A/5-14A |
|
Cooling Capacity |
6500/7500BTU |
|
Air Flow Rate |
250 CFM |
|
Rated Power |
600W/670W |
|
Refrigerant |
R134a 500g |
|
Power Consumption |
Eco mode: 250-300W Turbo mode: 400-650W |
|
Noise Level |
Eco mode: 45dB Boost mode:58dB |
|

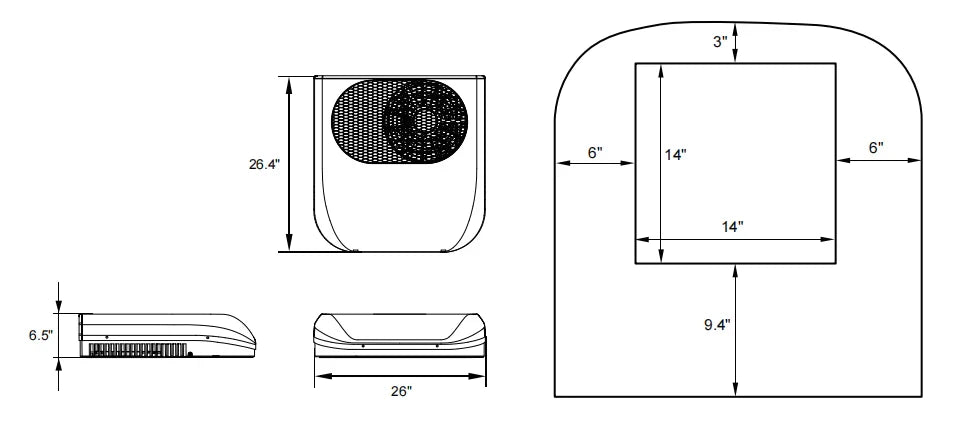

Roof Unit Dimension |
W26.4”*L26”*H6.5” |
|
ADB Dimension |
W13.8”*L11”*H4.3” |
|
Weight |
61lb |
Download User Manual
Inside the box:
- AC unit
- Mounting brackets
- Sealing gasket
- Mounting hardware
- Interior trim panel
- Remote
- 15ft wiring harness with in-line fuse (6AWG for 12V, 12AWG for 48V)
- User manual
* One-year limited warranty

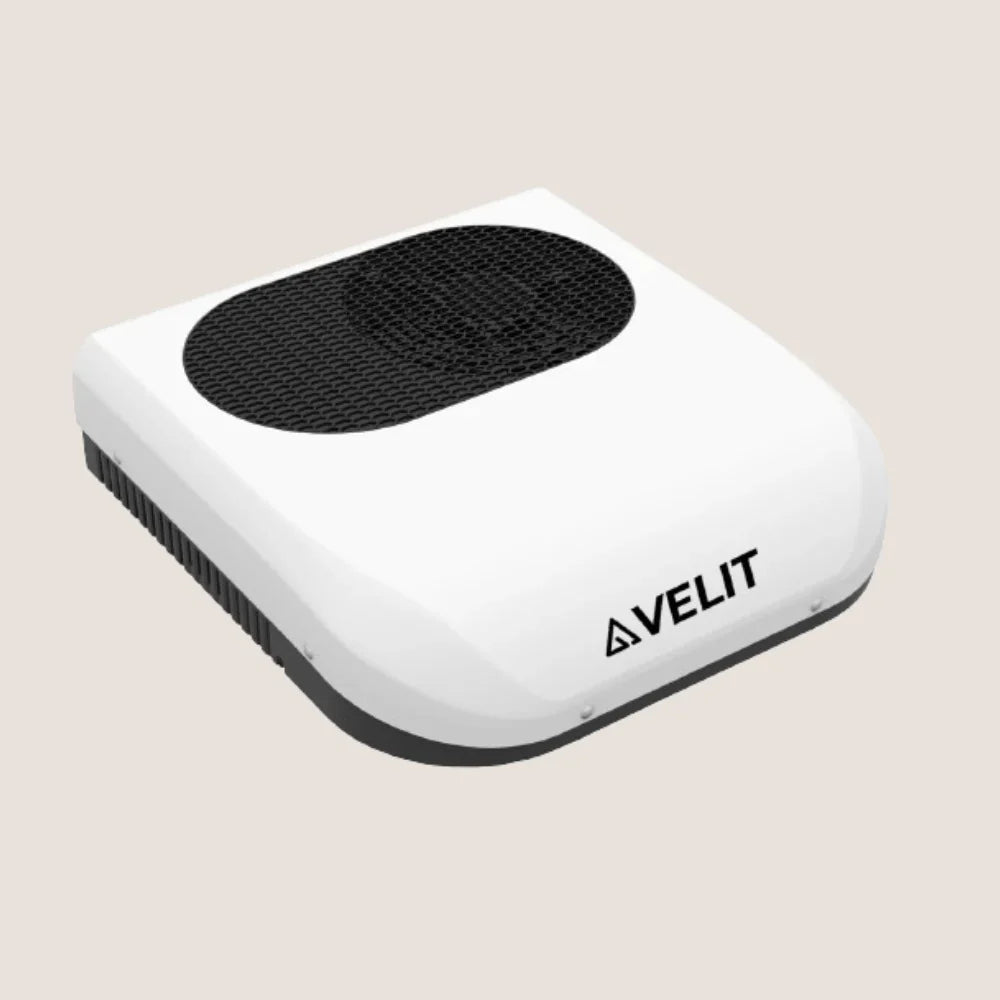

This super-efficient DC-powered rooftop air conditioner is one of the smallest rooftop air conditioners ever built. With the twin-cylinder rotor compressor, the Velit 2000R Mini delivers 7500 BTU of cooling capacity and draws as low as 20A (at 12V). It is also available for a 48Volt system. The unit can be directly powered by most vehicle alternators without the need for a second battery. It also has a slim profile with only 6.5” of clearance and can easily fit in the standard 14x14 rooftop cutouts.
This is a complete kit. For van installs or other uneven surfaces, you need to purchase the sealant separately. Sealant is not required for flat surface installs such as RV roofs.
